Product No.:SP-FA01
Keywords:slurry pump, slurry pump seal, slurry seal, centrifugal slurry pump, alumina production process, mechanical seal, shaft seal

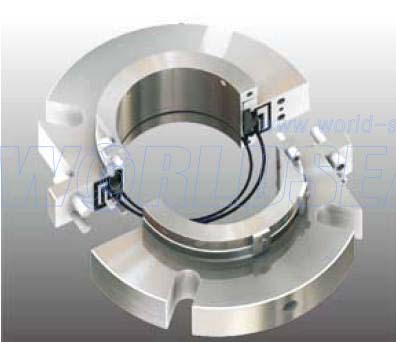

Product Description:TSSP-FA01 series can use in large slurry pumps of industry production process, for example alumina production process. These products can be flushing or without flushing. World seal have rich experience of the mechanical seal used in media of abrasive, corrosive, clogging and crystallizing.
|
OPERATING LIMITS |
|
|
Temperature: |
≤180℃ |
|
Pressure: |
≤1.6MPa |
|
Speed: |
≤3600rpm |
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
SiC/Carbon |
|
●Secondary Seal: |
VITON/EPDM |
|
●Other Parts : |
C-276/Duplex/SUS316 |
|

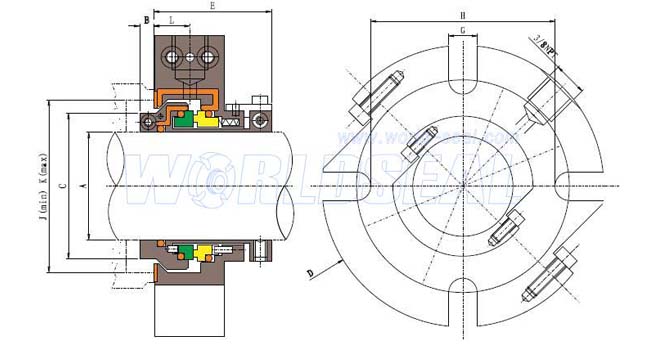

Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
|
24 |
1.5 |
0.25 |
2.187 |
5.25 |
2.125 |
2.5 |
0.562 |
3.125 |
2.25 |
2.625 |
0.656 |
|
27 |
1.687 |
0.25 |
2.437 |
5.5 |
2.125 |
2.5 |
0.562 |
3.375 |
2.5 |
2.875 |
0.656 |
|
28 |
1.75 |
0.25 |
2.437 |
5.5 |
2.125 |
2.5 |
0.562 |
3.375 |
2.5 |
2.875 |
0.656 |
|
30 |
1.875 |
0.25 |
2.562 |
5.5 |
2.125 |
2.5 |
0.562 |
3.344 |
2.625 |
3 |
0.656 |
|
31 |
1.937 |
0.25 |
2.625 |
5.44 |
2.125 |
2.5 |
0.562 |
3.563 |
2.687 |
3.125 |
0.656 |
|
32 |
2 |
0.25 |
2.687 |
5.44 |
2.125 |
2.5 |
0.562 |
3.563 |
2.75 |
3.125 |
0.656 |
|
34 |
2.125 |
0.25 |
2.812 |
6 |
2.125 |
2.5 |
0.687 |
3.688 |
2.875 |
3.375 |
0.656 |
|
35 |
2.188 |
0.25 |
2.937 |
6.25 |
2.125 |
2.5 |
0.687 |
3.813 |
3 |
3.375 |
0.656 |
|
36 |
2.25 |
0.25 |
3.062 |
6.25 |
2.125 |
2.5 |
0.687 |
3.937 |
3.125 |
3.5 |
0.656 |
|
38 |
2.375 |
0.25 |
3.188 |
6.25 |
2.125 |
2.5 |
0.687 |
4.062 |
3.25 |
3.5 |
0.656 |
|
39 |
2.438 |
0.25 |
3.188 |
6.44 |
2.125 |
2.5 |
0.687 |
4.125 |
3.375 |
3.625 |
0.656 |
|
40 |
2.5 |
0.25 |
3.188 |
6.44 |
2.125 |
2.5 |
0.687 |
4.125 |
3.375 |
3.625 |
0.656 |
|
42 |
2.625 |
0.25 |
3.347 |
6.44 |
2.125 |
2.5 |
0.687 |
4.438 |
3.5 |
3.875 |
0.656 |
|
43 |
2.688 |
0.25 |
3.562 |
7.82 |
2.125 |
2.5 |
0.687 |
4.438 |
3.625 |
4.125 |
0.656 |
|
44 |
2.75 |
0.25 |
3.562 |
7.82 |
2.125 |
2.5 |
0.687 |
4.438 |
3.625 |
4.125 |
0.656 |
|
46 |
2.875 |
0.25 |
3.687 |
7.82 |
2.125 |
2.5 |
0.687 |
4.812 |
3.812 |
4.25 |
0.656 |
|
47 |
2.938 |
0.25 |
3.812 |
7.88 |
2.125 |
2.5 |
0.687 |
4.938 |
3.937 |
4.375 |
0.656 |
|
48 |
3 |
0.25 |
3.812 |
7.88 |
2.125 |
2.5 |
0.687 |
4.938 |
3.937 |
4.375 |
0.656 |
|
52 |
3.25 |
0.281 |
4.188 |
8.25 |
2.437 |
2.812 |
0.812 |
5.188 |
4.25 |
4.75 |
0.812 |
|
54 |
3.375 |
0.281 |
4.312 |
8.25 |
2.437 |
2.812 |
0.812 |
5.313 |
4.375 |
4.875 |
0.812 |
|
55 |
3.438 |
0.281 |
4.437 |
8.5 |
2.437 |
2.812 |
0.812 |
5.437 |
4.5 |
5 |
0.812 |
|
56 |
3.5 |
0.281 |
4.437 |
8.5 |
2.437 |
2.812 |
0.812 |
5.437 |
4.5 |
5 |
0.812 |
|
58 |
3.625 |
0.281 |
4.562 |
8.63 |
2.437 |
2.812 |
0.812 |
5.562 |
4.625 |
5.125 |
0.812 |
|
60 |
3.75 |
0.281 |
4.625 |
8.82 |
2.437 |
2.812 |
0.812 |
5.688 |
4.687 |
5.125 |
0.812 |
|
62 |
3.875 |
0.281 |
4.812 |
8.82 |
2.437 |
2.812 |
0.812 |
5.813 |
4.875 |
5.25 |
0.812 |
|
64 |
4 |
0.281 |
4.937 |
8.82 |
2.437 |
2.812 |
0.812 |
5.813 |
5 |
5.37 |
0.812 |
|
68 |
4.25 |
0.281 |
5.188 |
9.25 |
2.437 |
2.812 |
0.812 |
6.063 |
5.25 |
5.75 |
0.812 |
|
70 |
4.375 |
0.281 |
5.312 |
9.25 |
2.437 |
2.812 |
0.812 |
6.437 |
5.375 |
5.875 |
0.812 |
|
72 |
4.5 |
0.281 |
5.406 |
9.69 |
2.437 |
2.812 |
0.812 |
6.5 |
5.5 |
6 |
0.812 |
|
76 |
4.75 |
0.281 |
5.656 |
9.75 |
2.437 |
2.812 |
0.812 |
6.938 |
5.75 |
6.25 |
0.812 |
|
79 |
4.938 |
0.375 |
6.188 |
*10.75 |
3.062 |
3.812 |
0.937 |
7.312 |
6.312 |
6.75 |
0.923 |
|
80 |
5 |
0.375 |
6.188 |
*10.75 |
3.062 |
3.812 |
0.937 |
7.312 |
6.312 |
6.75 |
0.923 |
|
82 |
5.125 |
0.375 |
6.375 |
*11.00 |
3.062 |
3.812 |
0.937 |
7.812 |
6.5 |
7.25 |
0.923 |
|
84 |
5.25 |
0.375 |
6.375 |
*11.00 |
3.062 |
3.812 |
0.937 |
7.812 |
6.5 |
7.25 |
0.923 |
|
88 |
5.5 |
0.375 |
6.688 |
*11.50 |
3.062 |
3.812 |
0.937 |
7.813 |
6.812 |
7.375 |
0.923 |
|
92 |
5.75 |
0.375 |
6.938 |
*12.00 |
3.062 |
3.812 |
0.937 |
8.156 |
7.062 |
7.625 |
0.923 |
|
96 |
6 |
0.375 |
7.188 |
*12.25 |
3.062 |
3.812 |
0.937 |
8.437 |
7.312 |
7.875 |
0.923 |
|
100 |
6.25 |
0.375 |
7.438 |
*12.50 |
3.062 |
3.812 |
0.937 |
8.656 |
7.562 |
8.125 |
0.923 |
|
104 |
6.5 |
0.375 |
7.688 |
*12.25 |
3.062 |
3.812 |
0.937 |
8.813 |
7.812 |
8.375 |
0.923 |
|
108 |
6.75 |
0.375 |
7.938 |
*12.50 |
3.25 |
4 |
0.937 |
9.312 |
8.062 |
8.625 |
0.923 |
|
112 |
7 |
0.375 |
8.188 |
*12.75 |
3.25 |
4 |
0.937 |
9.562 |
8.312 |
8.75 |
0.923 |
|
136 |
8.5 |
0.375 |
9.688 |
14.25 |
3.25 |
4 |
1 |
11 |
9.812 |
10.25 |
0.923 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
|
30 |
45mm(1.772) |
6.35 |
65.1 |
140 |
54 |
64 |
14.3 |
84.9 |
66.68 |
76.2 |
16.7 |
|
32 |
48mm(1.890) |
6.35 |
68.2 |
140 |
54 |
64 |
14.3 |
90.5 |
68.85 |
79.38 |
16.7 |
|
32 |
50mm(1.968) |
6.35 |
68.2 |
140 |
54 |
64 |
14.3 |
90.5 |
68.85 |
79.38 |
16.7 |
|
36 |
55mm(2.162) |
6.35 |
77.8 |
159 |
54 |
64 |
17.4 |
100 |
79.4 |
88.9 |
16.7 |
|
40 |
60mm(2.362) |
6.35 |
81 |
165 |
54 |
64 |
17.4 |
104.8 |
85.73 |
95.25 |
16.7 |
|
42 |
65mm(2.560) |
6.35 |
85 |
165 |
54 |
64 |
17.4 |
112.8 |
88.9 |
98.4 |
16.7 |
|
44 |
70mm(2.756) |
6.35 |
90.5 |
197 |
54 |
64 |
17.4 |
112.8 |
92.08 |
104.77 |
16.7 |
|
48 |
75mm(2.953) |
6.35 |
96.8 |
203 |
54 |
64 |
17.4 |
125.4 |
100 |
111.1 |
16.7 |
|
52 |
80mm(3.150) |
7.14 |
106.4 |
210 |
62 |
72 |
20.6 |
131.8 |
108 |
120.65 |
20.6 |
|
56 |
87mm(3.425) |
7.14 |
112.7 |
216 |
62 |
72 |
20.6 |
138.1 |
114.3 |
127 |
20.6 |
|
58 |
90mm(3.543) |
7.14 |
115.9 |
219 |
62 |
72 |
20.6 |
141.3 |
117.5 |
130.2 |
20.6 |
|
60 |
95mm(3.740) |
7.14 |
117.5 |
222 |
62 |
72 |
20.6 |
144.5 |
119.05 |
130.18 |
20.6 |
|
64 |
100mm(3.937) |
7.14 |
125.4 |
224 |
62 |
72 |
20.6 |
147.6 |
127 |
136.52 |
20.6 |
|
76 |
120mm(4.724) |
7.14 |
143.7 |
248 |
62 |
72 |
20.6 |
176.2 |
146.05 |
158.75 |
20.6 |
|
80 |
125mm(4.921) |
9.5 |
157.2 |
*273 |
77.8 |
96.8 |
23.8 |
185.7 |
160.3 |
171.4 |
23.4 |
