Product Name:DGS-B03
Keywords：non-contacting dry gas seal, mechanical seal

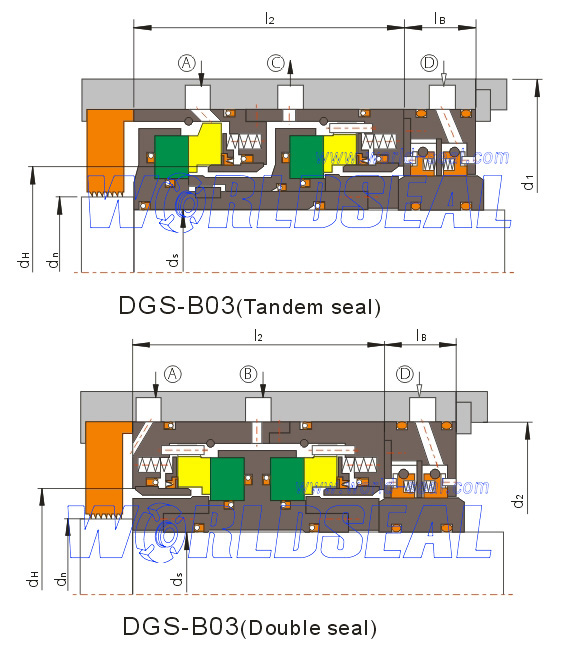

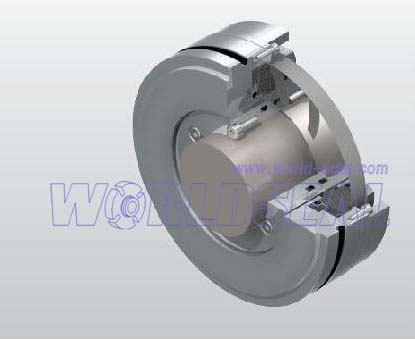

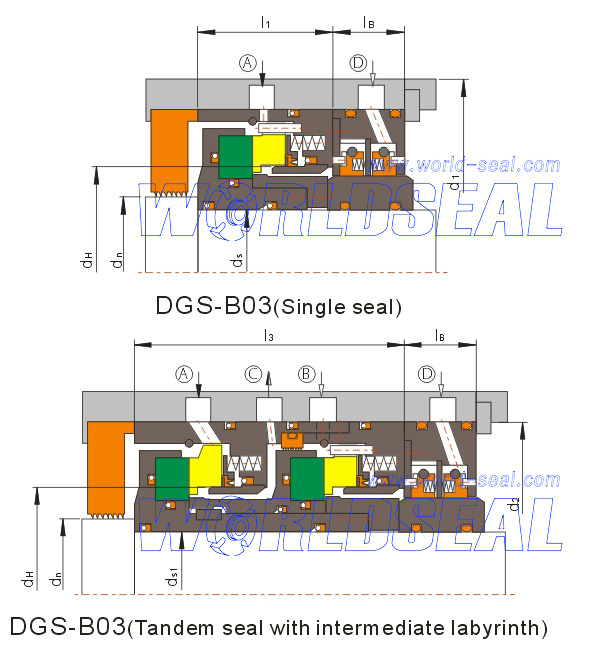

Product Description：Elastomer-free,gas-lubricated compressor seal for high pressure and low pressure applications. The secondary sealing elements specially developed by TRISUN for this purpose are particularly effective in terms of automatic alignment and resistance to ext-rusion,temperature and chemicals. The operational reliability of the TSDGS-B03 is accordingly very high.Available as a single,tandem and double seal of cartridge design.
OPERATING LIMITS Temperature: -170℃~230℃ Pressure: ≤35MPa Speed: ≤200m/s
Higher operations conditions also achievable, please contact with world seal engineer: info@world-seal.com
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
Carbon |
|
●Secondary Seal: |
VITON/Kalrez |
|
●Other Parts : |
Hastelloy-C/Duplex/SUS316 |
|
dn |
ds |
ds1 |
dH |
d1 |
d2 |
l1 |
l2 |
l3 |
lB |
|
49 |
37 |
31 |
61.7 |
102 |
106 |
40 |
73 |
81 |
25.5 |
|
56 |
44 |
38 |
69.9 |
111 |
115 |
40 |
73 |
81 |
25.5 |
|
63 |
51 |
45 |
76.8 |
118 |
122 |
40 |
73 |
81 |
25.5 |
|
68 |
58 |
52 |
83.9 |
129 |
133 |
40 |
73 |
81 |
25.5 |
|
73 |
63 |
56 |
88.8 |
134 |
138 |
48 |
89 |
98 |
25.5 |
|
78 |
68 |
61 |
93.8 |
139 |
143 |
48 |
89 |
98 |
29.5 |
|
83 |
73 |
66 |
98.7 |
144 |
148 |
48 |
89 |
98 |
29.5 |
|
88 |
78 |
71 |
103.7 |
149 |
153 |
51 |
95.5 |
104.5 |
29.5 |
|
93 |
82 |
76 |
108.7 |
155 |
159 |
51 |
95.5 |
104.5 |
29.5 |
|
98 |
87 |
81 |
113.7 |
160 |
164 |
51 |
95.5 |
104.5 |
29.5 |
|
103 |
92 |
86 |
118.6 |
165 |
169 |
51 |
95.5 |
104.5 |
29.5 |
|
108 |
97 |
91 |
123.6 |
170 |
174 |
51 |
95.5 |
104.5 |
29.5 |
|
113 |
102 |
96 |
128.6 |
175 |
179 |
51 |
95.5 |
104.5 |
29.5 |
|
118 |
107 |
101 |
133.6 |
180 |
184 |
51 |
95.5 |
104.5 |
29.5 |
|
123 |
112 |
106 |
138.6 |
185 |
189 |
52.5 |
99 |
108 |
29.5 |
|
130 |
119 |
113 |
150.5 |
197 |
201 |
52.5 |
99 |
108 |
29.5 |
|
135 |
124 |
118 |
155.5 |
202 |
206 |
55.5 |
99 |
113 |
29.5 |
|
140 |
129 |
123 |
160.5 |
207 |
211 |
55.5 |
99 |
113 |
29.5 |
|
145 |
134 |
128 |
165.5 |
212 |
216 |
55.5 |
99 |
113 |
29.5 |
|
150 |
139 |
133 |
170.5 |
218 |
222 |
55.5 |
99 |
113 |
29.5 |
|
155 |
144 |
138 |
175.5 |
223 |
227 |
55.5 |
99 |
113 |
29.5 |
|
160 |
148 |
141 |
181.4 |
2333 |
237 |
59.5 |
109 |
121 |
29.5 |
|
165 |
153 |
146 |
186.4 |
238 |
242 |
59.5 |
109 |
121 |
32.5 |
|
170 |
158 |
151 |
191.4 |
243 |
247 |
59.5 |
109 |
121 |
32.5 |
|
180 |
168 |
161 |
201.4 |
253 |
257 |
59.5 |
109 |
121 |
32.5 |
|
190 |
178 |
171 |
211.4 |
263 |
267 |
64 |
118 |
130.5 |
32.5 |
|
200 |
185 |
178 |
221.3 |
273 |
277 |
64 |
118 |
130.5 |
32.5 |
|
210 |
195 |
188 |
231.3 |
283 |
287 |
67 |
120 |
135.5 |
32.5 |
|
220 |
205 |
198 |
241.3 |
293 |
297 |
72 |
129 |
145.5 |
32.5 |
|
230 |
215 |
208 |
251.3 |
303 |
307 |
72 |
129 |
145.5 |
32.5 |
|
240 |
225 |
218 |
261.3 |
313 |
317 |
72 |
129 |
145.5 |
32.5 |
|
250 |
235 |
228 |
271.3 |
323 |
335 |
77 |
138 |
155.5 |
32.5 |
|
260 |
245 |
236 |
282.2 |
338 |
350 |
82 |
145 |
165 |
32.5 |
|
270 |
255 |
246 |
292.2 |
348 |
360 |
82 |
145 |
165 |
32.5 |
|
280 |
264 |
256 |
302.2 |
358 |
370 |
87 |
154 |
175 |
32.5 |
|
290 |
274 |
266 |
312.2 |
368 |
380 |
87 |
154 |
175 |
32.5 |
|
300 |
284 |
276 |
322.2 |
378 |
390 |
87 |
154 |
175 |
32.5 |
