Product Name:DGS-J02
Keywords:mechanical seal, dry gas seal, dry seal, gas seal, mechanical seals for pumps, cartridge seal, pump seals, mechanical shaft seals, dry gas seal centrifugal compressor, dry gas seal compressor, mechanical seals centrifugal pumps.

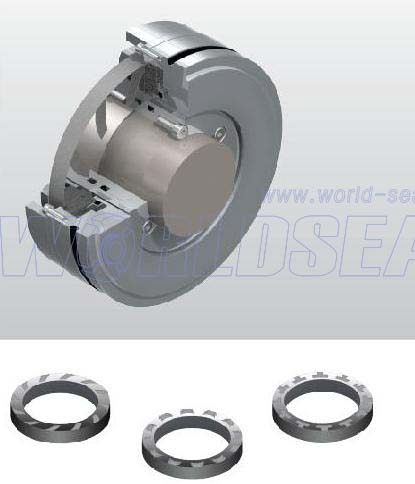

Product Description:DGS-J02 belongs non-contacting, vaporizing liquid seal. DGS-J02 non-contacting technology eliminates the dry running wear, vapor locking in the seal chamber and face popping. DGS-J02 can specially used in the pump, where the fluid media in at or near its point of vaporization.
|
OPERATING LIMITS |
|
|
Temperature: |
-20℃~+260℃ |
|
Pressure: |
≤12.4MPa |
|
Speed: |
≤180m/s |
Higher operations conditions also achievable, please contact with world seal engineer: info@world-seal.com
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
Carbon |
|
●Secondary Seal: |
VITON/Kalrez |
|
●Other Parts : |
Hastelloy-C/Duplex/SUS316 |
|

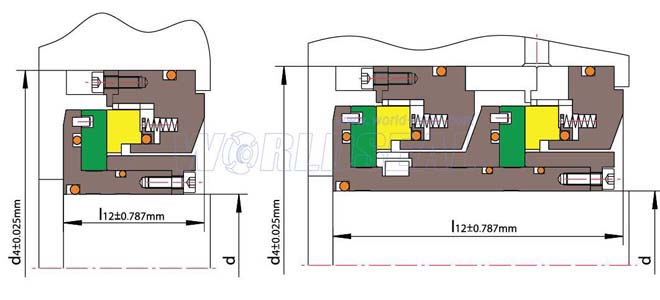

d Shaft Range |
d4 |
l12 Single Min |
l12 Tandem Min |
|
d Shaft Range |
d4 |
l12 Single Min |
l12 Tandem Min |
|
25.4-29.0 |
104.8 |
46.4 |
99.2 |
|
1.000-1.140 |
4.125 |
1.828 |
3.906 |
|
29.0-34.9 |
111.9 |
46.8 |
99.2 |
|
1.141-1.375 |
4.406 |
1.843 |
3.906 |
|
35.0-41.3 |
119.5 |
47.2 |
99.6 |
|
1.376-1.625 |
4.703 |
1.859 |
3.921 |
|
41.3-46.8 |
126.2 |
47.2 |
99.6 |
|
1.626-1.843 |
4.968 |
1.859 |
3.921 |
|
46.8-53.2 |
133.7 |
47.6 |
100 |
|
1.844-2.093 |
5.265 |
1.875 |
3.937 |
|
53.2-59.5 |
140.9 |
48.4 |
100.4 |
|
2.094-2.343 |
5.546 |
1.906 |
3.953 |
|
59.5-65.1 |
148 |
48.8 |
100.8 |
|
2.344-2.562 |
5.828 |
1.921 |
3.968 |
|
65.1-71.4 |
155.2 |
48.8 |
100.8 |
|
2.563-2.812 |
6.109 |
1.921 |
3.968 |
|
41.5-77.0 |
162.3 |
49.2 |
101.2 |
|
2.813-3.031 |
6.390 |
1.937 |
3.984 |
|
77.0-82.9 |
169.4 |
50 |
101.6 |
|
3.032-3.265 |
6.671 |
1.968 |
4.000 |
|
83.0-88.9 |
177 |
50 |
101.6 |
|
3.266-3.500 |
6.968 |
1.968 |
4.000 |
|
88.9-94.8 |
183.7 |
50.8 |
102.8 |
|
3.501-3.734 |
7.234 |
2.000 |
4.046 |
|
94.9-101.2 |
191.3 |
51.6 |
104.4 |
|
3.735-3.984 |
7.531 |
2.031 |
4.109 |
|
101.2-107.1 |
198.4 |
52 |
104.8 |
|
3.985-4.218 |
7.812 |
2.046 |
4.125 |
|
107.2-113.1 |
205.6 |
52.8 |
106.3 |
|
4.219-4.453 |
8.093 |
2.078 |
4.187 |
|
113.1-119.0 |
212.7 |
53.6 |
108 |
|
4.454-4.687 |
8.375 |
2.109 |
4.250 |
|
119.1-123.4 |
217.9 |
54.8 |
109.5 |
|
4.688-4.859 |
8.578 |
2.156 |
4.312 |
|
123.4-129.8 |
225.4 |
55.1 |
110.7 |
|
4.860-5.109 |
8.875 |
2.171 |
4.359 |
|
129.8-135.7 |
232.6 |
55.5 |
111.5 |
|
5.110-5.343 |
9.156 |
2.187 |
4.390 |
|
135.7-141.7 |
239.7 |
56.3 |
112.3 |
|
5.344-5.578 |
9.437 |
2.218 |
4.421 |
|
141.7-147.6 |
246.8 |
57.2 |
114.3 |
|
5.579-5.812 |
9.718 |
2.250 |
4.500 |
|
147.7-153.6 |
254 |
57.9 |
115.9 |
|
5.813-6.046 |
10.000 |
2.281 |
4.562 |
|
153.6-159.9 |
261.1 |
58.7 |
117.5 |
|
6.047-6.296 |
10.281 |
2.312 |
4.625 |
|
159.9-165.9 |
268.7 |
59.5 |
119 |
|
6.297-6.531 |
10.578 |
2.343 |
4.687 |
|
165.9-171.8 |
277.8 |
59.9 |
119.5 |
|
6.532-6.765 |
10.937 |
2.359 |
4.703 |
|
171.9-177.4 |
285.3 |
60.7 |
121 |
|
6.766-6.984 |
11.234 |
2.390 |
4.765 |
|
177.4-183.3 |
292.1 |
61.5 |
122.2 |
|
6.985-7.218 |
11.500 |
2.421 |
4.812 |
|
183.4-189.7 |
299.6 |
62.3 |
123.8 |
|
7.219-7.468 |
11.796 |
2.453 |
4.875 |
|
189.7-195.7 |
306.8 |
63.1 |
125.4 |
|
7.469-7.703 |
12.078 |
2.484 |
4.937 |
|
195.7-201.6 |
313.9 |
63.5 |
126.2 |
|
7.704-7.937 |
12.359 |
2.500 |
4.968 |
|
201.6-207.5 |
321.1 |
64.3 |
127.8 |
|
7.938-8.171 |
12.640 |
2.531 |
5.031 |
|
207.6-213.5 |
328.2 |
65.1 |
129.4 |
|
8.172-8.406 |
12.921 |
2.562 |
5.093 |
|
213.5-219.9 |
335.4 |
65.5 |
130.2 |
|
8.407-8.656 |
13.203 |
2.578 |
5.125 |
