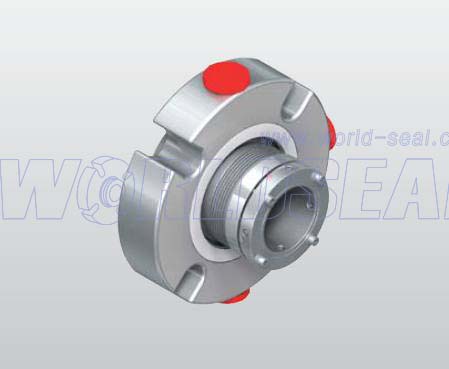

Product Name:MB-C02
Product type:For big compressors and industrial pump metal bellows seal
Keywords:For big compressors and industrial pump metal bellows seal, metal bellows seal
Product Description:MB-C02 metal bellows seal,for big compressors and industrial pump.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.
|
OPERATING LIMITS |
|
|
Temperature: |
-73℃~+427℃ |
|
Pressure: |
≤2MPa |
|
Speed: |
≤20m/s |
|
|
|
|
●Rotary Ring: |
SiC/Carbon/TC |
|
●Stationary Ring: |
SiC/TC |
|
●Secondary Seal: |
Flexiblecarbon |
|
●Metal Bellows: |
SUS316L/AM350/Inconel718/Titanium/Hastelloy-C/Alloy-20 |
|
●Other Parts : |
SUS304/SUS316/Titanium/Hastelloy-C |
|

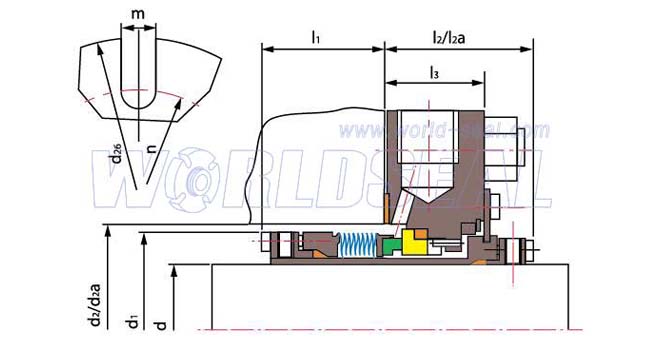

d |
d26max |
d2min |
d2amin |
d1max |
l1min |
l2max |
l2amax |
n |
mmax |
l3max |
NPT |
||
|
3/8" |
1/2" |
5/8" |
|||||||||||
|
1.125 |
4.25 |
2 |
2.25 |
1.94 |
1.64 |
1.92 |
2.05 |
3.12 |
3.24 |
* |
0.5 |
1.26 |
3/8 |
|
1.125 |
4.25 |
1.88 |
2.13 |
0.81 |
1.58 |
1.92 |
2.05 |
2.87 |
* |
* |
0.44 |
1.26 |
3/8 |
|
1.25 |
4.5 |
2.25 |
2.38 |
2.17 |
1.68 |
1.92 |
2.05 |
3.19 |
3.31 |
* |
0.5 |
1.26 |
3/8 |
|
1.375 |
4.75 |
2.38 |
2.63 |
2.3 |
1.68 |
1.99 |
2.11 |
3.49 |
3.62 |
* |
0.56 |
1.32 |
3/8 |
|
1.375 |
4.25 |
2.13 |
2.38 |
2.06 |
1.64 |
1.92 |
2.05 |
3.24 |
* |
* |
0.44 |
1.26 |
3/8 |
|
1.5 |
5.25 |
2.5 |
2.75 |
2.42 |
1.68 |
1.99 |
2.11 |
3.62 |
3.74 |
* |
0.56 |
1.32 |
1/2 |
|
1.625 |
5.5 |
2.63 |
2.88 |
2.55 |
1.68 |
1.99 |
2.11 |
3.74 |
3.87 |
* |
0.56 |
1.32 |
1/2 |
|
1.75 |
5.75 |
2.75 |
3 |
2.67 |
1.68 |
1.99 |
2.11 |
3.87 |
3.99 |
* |
0.56 |
1.32 |
1/2 |
|
1.875 |
6 |
2.88 |
3.25 |
2.8 |
1.8 |
2.05 |
2.17 |
4.12 |
4.24 |
* |
0.56 |
1.38 |
1/2 |
|
2 |
6.25 |
3 |
3.38 |
2.92 |
1.8 |
2.05 |
2.17 |
4.24 |
4.37 |
4.49 |
0.69 |
1.38 |
1/2 |
|
2.125 |
6.25 |
3.13 |
3.5 |
3.05 |
1.8 |
2.05 |
2.17 |
4.37 |
4.49 |
4.62 |
0.69 |
1.38 |
1/2 |
|
2.25 |
6.5 |
3.25 |
3.63 |
3.19 |
1.8 |
2.05 |
2.17 |
4.49 |
4.62 |
4.74 |
0.69 |
1.38 |
1/2 |
|
2.375 |
6.5 |
3.38 |
3.63 |
3.31 |
1.8 |
2.11 |
2.24 |
4.49 |
4.62 |
4.74 |
0.69 |
1.45 |
1/2 |
|
2.5 |
6.5 |
3.5 |
3.75 |
3.44 |
1.8 |
2.11 |
2.24 |
4.62 |
4.74 |
4.87 |
0.69 |
1.45 |
1/2 |
|
2.625 |
6.75 |
3.75 |
4 |
3.63 |
1.83 |
2.11 |
2.24 |
4.87 |
4.99 |
5.12 |
0.69 |
1.45 |
1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
d |
d26max |
d2min |
d2amin |
d1max |
l1min |
l2max |
l2amax |
n |
mmax |
l3max |
NPT |
||
|
10mm |
12mm |
16mm |
|||||||||||
|
25 |
108 |
48 |
54 |
46 |
42 |
49 |
52 |
76 |
78 |
* |
13 |
32 |
3/8 |
|
30 |
108 |
51 |
57 |
49 |
42 |
49 |
52 |
79 |
82 |
* |
13 |
32 |
3/8 |
|
32 |
114 |
57 |
60 |
55 |
43 |
49 |
52 |
81 |
99 |
* |
13 |
32 |
3/8 |
|
35 |
121 |
60 |
67 |
58 |
43 |
50 |
54 |
89 |
92 |
* |
14 |
34 |
3/8 |
|
38 |
133 |
64 |
70 |
61 |
43 |
50 |
54 |
92 |
95 |
* |
14 |
34 |
1/2 |
|
40 |
140 |
67 |
73 |
65 |
43 |
50 |
54 |
95 |
98 |
* |
14 |
34 |
1/2 |
|
42 |
140 |
67 |
73 |
65 |
43 |
50 |
54 |
95 |
98 |
* |
14 |
34 |
1/2 |
|
45 |
146 |
70 |
76 |
68 |
43 |
50 |
54 |
98 |
101 |
* |
14 |
34 |
1/2 |
|
50 |
159 |
76 |
80 |
74 |
46 |
52 |
55 |
108 |
111 |
114 |
18 |
35 |
1/2 |
|
55 |
159 |
79 |
89 |
77 |
46 |
52 |
55 |
111 |
114 |
117 |
18 |
35 |
1/2 |
|
60 |
165 |
86 |
92 |
84 |
46 |
54 |
57 |
114 |
117 |
120 |
18 |
37 |
1/2 |
|
65 |
165 |
89 |
95 |
87 |
46 |
54 |
57 |
117 |
120 |
123 |
18 |
37 |
1/2 |
