Product Name:SC-J04



Keywords:For petroleum, chemistry and paper making single cartridge seal. single cartridge seal



Product Description:SC-J04 single cartridge seal, For petroleum, chemistry and paper making,medical industry.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.



OPERATING LIMITS

Temperature:

-30℃~+205℃

Pressure:

≤2.8Mpa

Speed:

≤25m/s













Rotary Ring:

SiC/Carbon/TC

Stationary Ring:

SiC/Carbon

Secondary Seal:

VITON/PTFECoatedVITON/PTFE

Other Parts :

SUS304/SUS316/Titanium/Hastelloy-C

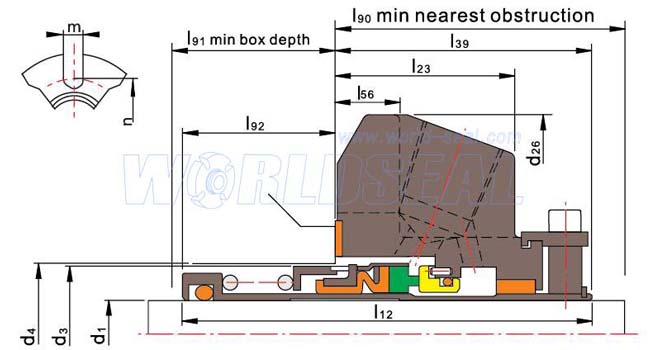

d1

d3

d4

d26

l12

l23

l39

l56

l90

l91

l92

m

n

min

max

25

39.7

41.3

48

101.6

84.5

34.4

49.6

13.5

50.8

38

34.9

13.3

71.2

28

42.9

44.5

51.2

104.8

80.8

36.7

52.4

13.5

54

31.6

28.5

13.3

74.5

30

44.5

46.1

56.5

108

81.7

36.7

52.4

13.5

54

32.5

29.4

13.3

81.6

32

45

47.6

58.3

108

86.1

36.7

52.4

13.5

54

36.9

33.7

13.3

81.6

33

49.2

50.8

61.5

111.1

83.6

36.7

52.4

13.5

54

34.4

31.2

13.3

84.8

35

49.2

50.8

61.5

111.8

83.6

36.7

52.4

13.5

54

34.4

31.2

13.3

84.8

38

54.8

56.3

68.1

123.8

90.1

37.8

54

15.1

55.6

39.3

36.1

13.3

91.4

40

57.9

59.5

71.4

127

91.7

37.8

54

15.1

55.6

40.9

37.7

14.3

95.7

43

61.1

63

74.1

133.4

92.1

37.8

54

15.1

55.6

41.3

38.1

14.3

98.4

45

61.1

63

74.1

133.4

92.1

37.8

54

15.1

55.6

41.3

38.1

14.3

98.4

48

64.3

66.7

74.1

133.4

92.1

37.8

54

15.1

55.6

41.3

38.1

14.3

98.4

50

68.2

70

76.6

139.7

102.7

40.7

58.7

27

60.3

47.1

43.9

14.3

101.6

53

71.4

73

85.3

148.8

102.7

40.7

58.7

15.1

60.3

47.1

43.9

17.4

113.5

55

74.6

76.7

85.3

148.8

105.8

40.7

58.7

15.1

690.3

50.3

47.1

17.4

113.5

58

74.6

76.2

88.5

165.1

105.8

40.7

58.7

15.1

60.3

50.3

47.1

17.4

116

60

77.8

79.4

91.7

165.1

103.2

43.6

62.6

15.9

64.2

43.7

40.5

17.4

119.9

63

82.6

85.7

98.8

171.5

109.9

43.6

65.1

15.9

66.7

48

44.8

17.4

127

65

82.6

85.7

98.8

171.5

109.9

43.6

65.1

15.9

66.7

48

44.8

17.4

127

68

88.9

92.1

103.2

171.5

116

41.2

63.5

15.9

65.1

55.7

52.5

17.4

131.3

70

88.9

92.1

103.2

171.5

116

41.2

63.5

15.9

65.1

55.7

52.5

17.4

131.3

75

100

101.6

113.5

196.9

120.7

45.4

65.1

17.4

66.7

58.8

55.6

20.6

145.3

80

103.2

104.8

116.8

188.9

119.8

40.5

63.8

*

66.9

59.3

56.1

20.6

148.4

85

109.5

111.1

123.2

206.4

126.2

40.5

65.1

*

68.3

64.3

61.1

20.6

154.8

90

115.9

117.5

129.5

212.7

132.5

40.5

65.1

*

68.3

70.6

67.5

17.4

158.8

95

119.1

121.4

132.1

222.3

127.8

40.5

65.1

*

68.3

65.9

62.7

17.4

172

100

127.5

129.9

139.7

228.6

137.3

40.5

65.1

*

68.3

75.4

72.2

20.6

171.7

125

165.1

167.5

184.4

304.8

162.7

44.4

77.2

*

80.5

88.5

88.4

20.6

254
