Product Name:DGS-J03
Keywords:mechanical seal, dry gas seal, dry seal, gas seal, mechanical seals for pumps, cartridge seal, pump seals, mechanical shaft seals, dry gas seal centrifugal compressor, dry gas seal compressor, mechanical seals centrifugal pumps.

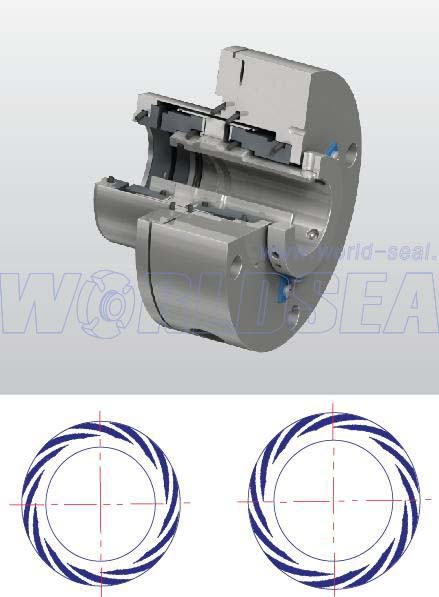

Product Description:DGS-J03 belong to gas lubricated, non-contacting, double cartridge seal. DGS-J03 is a state-of-the –art gas lubrication mechanical seal. The using of pressurized inert gas source ensure the zero emissions of positively sealing hazardous to the atmosphere. DGS-J03 provides extended seal life, reduced power consumption, and elimination of wet seal lubrication system.
|
OPERATING LIMITS |
|
|
Temperature: |
-20℃~+260℃ |
|
Pressure: |
≤2.1MPa |
|
Speed: |
≤1450rpm |
Higher operations conditions also achievable, please contact with world seal engineer: info@world-seal.com
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
Carbon |
|
●Secondary Seal: |
VITON/Kalrez |
|
●Other Parts : |
Hastelloy-C/Duplex/SUS316 |
|

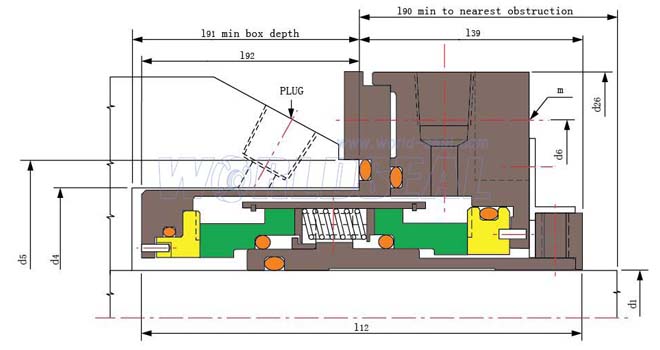

seal size |
d1 |
d4 |
d26 |
l12 |
l39 |
l90 |
l91 |
l92 |
d5 |
m |
d6 |
|
(inches) |
|||||||||||
|
1.125 |
28.580 |
66.680 |
114.300 |
109.520 |
57.150 |
58.720 |
56.370 |
52.370 |
79.380 |
M10 |
95.250 |
|
1.375 |
34.930 |
73.030 |
127.000 |
103.200 |
52.400 |
60.330 |
54.800 |
50.800 |
85.730 |
M10 |
101.600 |
|
1.500 |
38.100 |
76.200 |
139.700 |
103.200 |
50.800 |
60.330 |
56.400 |
52.400 |
95.200 |
M12 |
114.300 |
|
1.625 |
41.280 |
85.730 |
136.530 |
119.670 |
53.670 |
69.000 |
70.000 |
66.000 |
98.430 |
M10 |
112.700 |
|
1.750 |
44.450 |
88.900 |
165.100 |
119.930 |
65.960 |
71.420 |
57.970 |
53.970 |
110.240 |
M12 |
139.700 |
|
1.875 |
47.630 |
92.080 |
149.230 |
132.940 |
78.540 |
92.080 |
58.410 |
54.410 |
104.780 |
M12 |
127.000 |
|
2.000 |
50.800 |
95.250 |
146.050 |
116.650 |
64.280 |
65.070 |
56.370 |
52.370 |
111.130 |
M10 |
127.000 |
|
2.125 |
53.980 |
98.420 |
180.980 |
118.300 |
65.170 |
72.210 |
57.130 |
53.130 |
119.660 |
M16 |
152.400 |
|
2.375 |
60.330 |
107.950 |
180.980 |
117.040 |
55.550 |
64.290 |
65.490 |
61.490 |
133.350 |
M16 |
152.400 |
|
2.500 |
63.500 |
114.300 |
200.030 |
117.090 |
52.390 |
73.030 |
68.700 |
64.700 |
138.560 |
M16 |
171.450 |
|
2.625 |
66.680 |
117.480 |
177.800 |
117.050 |
52.350 |
103.170 |
68.700 |
64.700 |
130.180 |
M12 |
152.400 |
|
2.750 |
69.850 |
120.650 |
200.030 |
124.820 |
62.920 |
72.390 |
65.900 |
61.900 |
138.560 |
M16 |
171.450 |
|
3.000 |
76.200 |
127.000 |
203.200 |
124.990 |
67.840 |
121.440 |
61.150 |
57.150 |
146.050 |
M16 |
171.450 |
|
3.250 |
82.550 |
133.350 |
195.250 |
131.330 |
71.000 |
119.990 |
64.330 |
60.330 |
146.050 |
M16 |
165.000 |
|
3.500 |
88.900 |
142.880 |
210.340 |
142.440 |
82.110 |
133.350 |
64.330 |
60.330 |
158.750 |
M16 |
177.800 |
|
3.750 |
95.250 |
152.400 |
239.700 |
147.650 |
65.150 |
82.550 |
86.500 |
82.500 |
171.400 |
M16 |
209.550 |
|
4.000 |
101.600 |
158.750 |
248.000 |
157.470 |
113.170 |
127.000 |
48.300 |
44.300 |
185.000 |
M20 |
215.000 |
|
seal size |
d1 |
d4 |
d26 |
l12 |
l39 |
l90 |
l91 |
l92 |
d5 |
m |
d6 |
|
(inches) |
|||||||||||
|
28 |
28 |
66.68 |
114.3 |
109.52 |
57.15 |
58.72 |
56.37 |
52.37 |
79.38 |
M10 |
95.25 |
|
35 |
35 |
73.03 |
127 |
103.2 |
52.4 |
60.33 |
54.8 |
50.8 |
85.73 |
M10 |
101.6 |
|
38 |
38 |
76.2 |
139.7 |
103.2 |
50.8 |
60.33 |
56.4 |
52.4 |
95.2 |
M12 |
114.3 |
|
40 |
40 |
85.73 |
136.53 |
119.67 |
53.67 |
69 |
70 |
66 |
98.43 |
M10 |
112.7 |
|
45 |
45 |
88.9 |
165.1 |
119.93 |
65.96 |
71.42 |
57.97 |
53.97 |
110.24 |
M12 |
139.7 |
|
48 |
48 |
92.08 |
149.23 |
132.94 |
78.54 |
92.08 |
58.41 |
54.41 |
104.78 |
M12 |
127 |
|
50 |
50 |
95.25 |
146.05 |
116.65 |
64.28 |
65.07 |
56.37 |
52.37 |
111.13 |
M10 |
127 |
|
55 |
55 |
98.42 |
180.98 |
118.3 |
65.17 |
72.21 |
57.13 |
53.13 |
119.66 |
M16 |
152.4 |
|
60 |
60 |
107.95 |
180.98 |
117.04 |
55.55 |
64.29 |
65.49 |
61.49 |
133.35 |
M16 |
152.4 |
|
63 |
63 |
114.3 |
200.03 |
117.09 |
52.39 |
73.03 |
68.7 |
64.7 |
138.56 |
M16 |
171.45 |
|
65 |
65 |
117.48 |
177.8 |
117.05 |
52.35 |
103.17 |
68.7 |
64.7 |
130.18 |
M12 |
152.4 |
|
70 |
70 |
120.65 |
200.03 |
124.82 |
62.92 |
72.39 |
65.9 |
61.9 |
138.56 |
M16 |
171.45 |
|
75 |
75 |
127 |
203.2 |
124.99 |
67.84 |
121.44 |
61.15 |
57.15 |
146.05 |
M16 |
171.45 |
|
80 |
80 |
133.35 |
195.25 |
131.33 |
71 |
119.99 |
64.33 |
60.33 |
146.05 |
M16 |
165 |
|
90 |
90 |
142.88 |
210.34 |
142.44 |
82.11 |
133.35 |
64.33 |
60.33 |
158.75 |
M16 |
177.8 |
|
95 |
95 |
152.4 |
239.7 |
147.65 |
65.15 |
82.55 |
86.5 |
82.5 |
171.4 |
M16 |
209.55 |
|
100 |
100 |
158.75 |
248 |
157.47 |
113.17 |
127 |
48.3 |
44.3 |
185 |
M20 |
215 |
