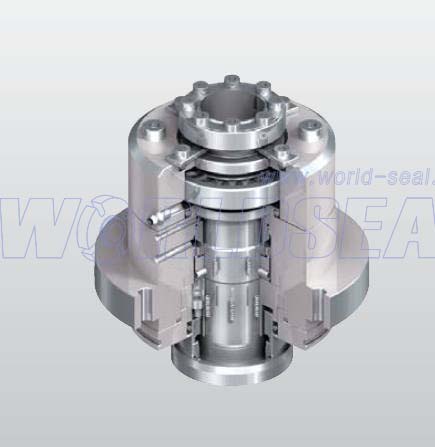

Product No.:MA-B03
Keywords:For food processing,medical industry mixer and agitator seal, mixer and agitator seal
Product Description:MA-B03 mixer and agitator seal, for food processing,medical industry.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.
|
OPERATING LIMITS |
|
|
Temperature: |
-30℃~+200℃/-20℃~+300℃ |
|
Pressure: |
≤0.6Mpa/≤1MPa |
|
Speed: |
≤10m/s;≤20m/s |
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
SiC/TC/Carbon |
|
●Secondary Seal: |
VITON/PTFECoatedVITON/PTFE |
|
●Other Parts : |
SUS304/SUS316/Titanium/Hastelloy-C |
|

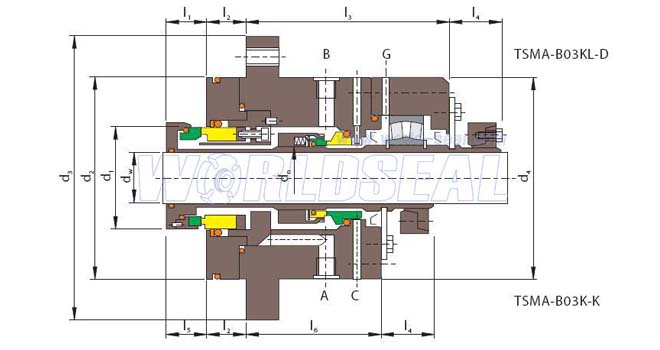

dn |
dw |
d1 |
d2 |
d3 |
d4 |
l1 |
l2 |
l3 |
l4 |
l5 |
l6 |
A,B |
C |
|
30 |
20 |
52 |
117 |
140 |
118 |
35 |
30 |
114 |
30 |
22 |
75 |
G3/8 |
G1/8 |
|
35 |
25 |
58 |
124 |
150 |
128 |
35 |
30 |
127 |
30 |
22 |
85 |
G3/8 |
G1/8 |
|
40 |
30 |
62 |
134 |
165 |
138 |
35 |
30 |
129 |
30 |
24 |
87 |
G3/8 |
G1/8 |
|
45 |
35 |
68 |
140 |
175 |
148 |
35 |
30 |
130 |
30 |
24 |
87 |
G3/8 |
G1/8 |
|
50 |
40 |
75 |
145 |
175 |
148 |
35 |
30 |
133 |
34 |
26 |
90 |
G3/8 |
G1/8 |
|
55 |
45 |
82.7 |
150 |
175 |
148 |
35 |
30 |
135 |
34 |
26 |
90 |
G3/8 |
G1/8 |
|
60 |
50 |
85 |
160 |
185 |
158 |
41 |
30 |
150 |
34 |
30 |
105 |
G3/8 |
G1/8 |
|
65 |
50 |
90 |
170 |
195 |
168 |
41 |
30 |
160 |
34 |
30 |
105 |
G3/8 |
G1/8 |
|
70 |
55 |
95 |
175 |
205 |
178 |
41 |
30 |
160 |
34 |
30 |
105 |
G3/8 |
G1/8 |
|
75 |
60 |
100 |
180 |
205 |
178 |
41 |
30 |
160 |
34 |
30 |
105 |
G3/8 |
G1/8 |
|
80 |
65 |
110 |
190 |
220 |
188 |
41 |
40 |
190 |
44 |
30 |
105 |
G3/8 |
G1/8 |
|
85 |
70 |
115 |
195 |
230 |
198 |
41 |
40 |
190 |
44 |
30 |
105 |
G3/8 |
G1/8 |
|
90 |
75 |
120 |
200 |
230 |
198 |
41 |
40 |
190 |
44 |
30 |
105 |
G3/8 |
G1/8 |
|
95 |
80 |
127 |
205 |
235 |
203 |
41 |
40 |
190 |
44 |
30 |
105 |
G3/8 |
G1/8 |
|
100 |
80 |
130 |
210 |
240 |
208 |
41 |
40 |
190 |
44 |
30 |
105 |
G3/8 |
G1/8 |
|
105 |
85 |
135 |
215 |
250 |
218 |
41 |
40 |
190 |
44 |
30 |
105 |
G1/2 |
G1/4 |
|
110 |
90 |
140 |
230 |
260 |
228 |
41 |
40 |
190 |
44 |
31 |
110 |
G1/2 |
G1/4 |
|
115 |
95 |
145 |
235 |
270 |
238 |
41 |
40 |
190 |
44 |
31 |
110 |
G1/2 |
G1/4 |
|
120 |
100 |
150 |
240 |
270 |
238 |
42 |
40 |
200 |
50 |
31 |
120 |
G1/2 |
G1/4 |
|
130 |
110 |
160 |
255 |
290 |
258 |
42 |
40 |
200 |
50 |
31 |
120 |
G1/2 |
G1/4 |
|
140 |
120 |
172 |
265 |
305 |
268 |
43 |
50 |
220 |
50 |
41 |
130 |
G1/2 |
G1/4 |
|
150 |
130 |
185 |
275 |
315 |
278 |
43 |
50 |
220 |
50 |
41 |
130 |
G1/2 |
G1/4 |
|
160 |
140 |
195 |
290 |
335 |
298 |
43 |
50 |
220 |
50 |
41 |
130 |
G1/2 |
G1/4 |
|
170 |
150 |
205 |
300 |
335 |
323 |
47 |
50 |
220 |
50 |
45 |
130 |
G1/2 |
G1/4 |
|
180 |
160 |
220 |
330 |
355 |
358 |
47 |
50 |
250 |
50 |
45 |
140 |
G1/2 |
G1/4 |
|
190 |
170 |
230 |
345 |
375 |
358 |
47 |
50 |
250 |
55 |
45 |
140 |
G1/2 |
G1/4 |
|
200 |
180 |
240 |
365 |
395 |
378 |
47 |
50 |
250 |
55 |
45 |
140 |
G1/2 |
G1/4 |
|
210 |
190 |
260 |
385 |
415 |
378 |
50 |
50 |
250 |
55 |
45 |
140 |
G1/2 |
G1/4 |
|
220 |
190 |
270 |
395 |
425 |
388 |
50 |
50 |
250 |
55 |
45 |
140 |
G1/2 |
G1/4 |
|
230 |
200 |
280 |
395 |
425 |
388 |
50 |
50 |
300 |
55 |
45 |
160 |
G1/2 |
G1/4 |
