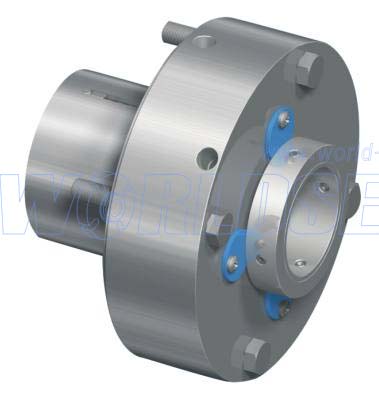

Product Name:SC-FS04



Keywords:For petroleum, chemistry and paper making single cartridge seal. single cartridge seal



Product Description:SC-FS04 single cartridge seal, For petroleum, chemistry and paper making,medical industry.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.



OPERATING LIMITS

Temperature:

-73℃~+343℃

Pressure:

≤6.9Mpa

Speed:

≤23m/s





Rotary Ring:

TC

Stationary Ring:

Carbon

Secondary Seal:

VITON/PTFECoatedVITON/PTFE

Other Parts :

SUS304/SUS316/Titanium/Hastelloy-C

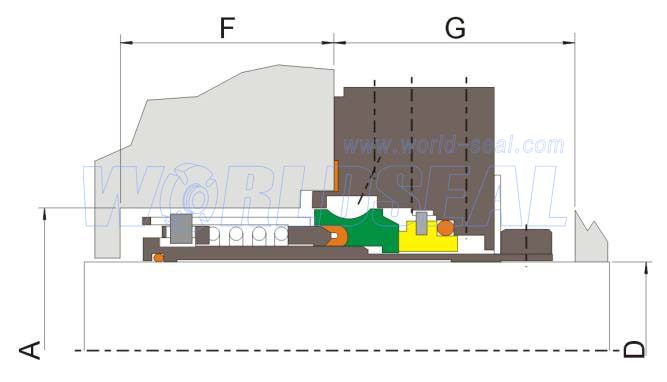

A

D

F

G



A

D

F

G

2.063

0.878

2

2.75



52.4

22.3

50.8

69.8

2.438

1.065

1.938

2.75



61.9

27.1

49.2

69.8

2.375

1.128

2.063

3



60.3

28.7

52.4

76.2

2.938

1.315

2.281

3.063



74.6

33.4

57.9

77.8

2.813

1.44

2.406

3.094



71.4

36.6

61.1

78.6

3.125

1.565

2.625

3.75



79.4

39.8

66.7

95.3

3.25

1.815

2.375

3.688



82.5

46.1

60.3

93.7

3.5

1.878

3.156

3.656



88.9

47.7

80.2

92.9

3.75

2.003

3.094

3.969



95.2

50.9

78.6

100.8

4.063

2.378

2.813

4.031



103.2

60.4

71.4

102.4

4.438

2.503

2.813

4.313



112.7

63.6

71.4

109.5

4.563

2.753

2.813

4.313



115.9

69.9

71.4

109.5

4.938

2.878

2.938

4.5



125.4

73.1

74.6

114.3

4.938

3.003

2.844

4.438



125.4

76.3

72.2

112.7

4.938

3.128

3

4.375



125.4

79.5

76.2

111.1

5.188

3.253

3.031

4.438



131.8

82.6

77

112.7

5.25

3.503

3.063

4.5



133.3

89

77.8

114.3

5.625

3.753

3.188

4.406



142.9

95.3

81

111.9

5.75

3.753

3.438

4.469



146

95.3

87.3

113.5

6.063

4.003

3.063

4.563



154

101.7

77.8

115.9

6.313

4.315

3.594

4.281



160.3

109.6

91.3

108.7

6.625

4.565

3.688

4.625



168.3

116

93.7

117.5

7.125

4.94

3.813

4.813



181

125.5

96.9

122.2

7.75

5.503

3.875

4.719



196.8

139.8

98.4

119.8
