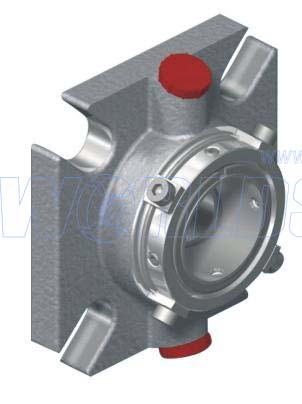

Product Name:SC-A05



Keywords:For petroleum, chemistry and paper making single cartridge seal. single cartridge seal



Product Description:SC-A05 single cartridge seal, For petroleum, chemistry and paper making,medical industry.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.



OPERATING LIMITS

Temperature:

-30℃~+200℃

Pressure:

≤2.3Mpa

Speed:

≤23m/s













Rotary Ring:

SiC/Carbon/TC

Stationary Ring:

SiC/TC

Secondary Seal:

VITON/PTFECoatedVITON/PTFE

Other Parts :

SUS304/SUS316/Titanium/Hastelloy-C

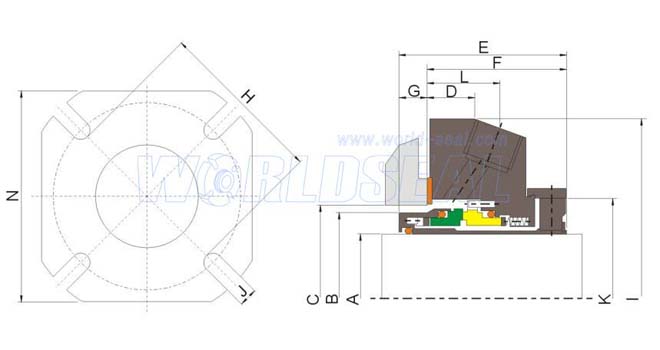

Seal Size

A

B

Cmin

Cmax

D

E

F

G

H

I

J

K

L

N

24

24

38

40

48

11.9

55.7

45.7

10

61

105

14

51

20.5

99

25

25

39

41

51

11.9

55.7

45.7

10

61

105

14

51

20.5

101.6

28

28

42.6

44

54

11.9

55.7

45.7

10

65

111

14

55.5

20.3

99

30

30

44.1

46

54

11.9

55.7

45.7

10

64.6

105

14

56.4

20.3

97.8

32

32

47.1

49

57

14

55.7

45.7

10

66.5

105

14

59.5

21.2

99

33

33

47.1

49

57

14

55.7

45.7

10

66.5

105

14

59.5

21.2

99

35

35

49

51

59

13.2

55.7

45.7

10

68.5

111

14

61.5

21.5

104.1

38

38

52.9

57

70

16

57.6

47.6

10

80.7

135

14

70.7

24.6

114.3

40

40

54.8

59

70.5

16

57.6

47.6

10

80.7

135

14

70.7

24.6

114.3

43

43

56.1

61

70.5

15.5

7

47.6

10

80.7

135

14

70.7

20.5

114.3

45

45

59.3

64

75

16

57.6

47.6

10

83.7

139

14

75.7

24.3

117.5

48

48

62.4

66.6

75

16

57.6

47.6

10

83.7

139

14

75.7

24.3

117.5

50

50

65.3

70

78

16

57.6

47.6

10

87.6

150

17.5

79

24.3

124.5

53

53

68.8

73

87

15.5

57.6

47.6

10

97

150

17.5

85

22.5

136.5

55

55

68.8

73

87

15.5

57.6

47.6

10

97

150

17.5

85

22.5

136.5

58

58

72

76.2

92

16

57.6

47.6

10

102.4

164.5

17.5

88.7

24.6

139.7

60

60

75.2

80

92

16

57.6

47.6

10

102.4

164.5

17.5

88.7

24.6

139.7

63

63

78.3

83

98.5

16

57.6

47.6

10

108.7

171

17.5

96.1

23.7

147.4

65

65

81.5

86

98.5

16

57.6

47.6

10

108.7

171

17.5

96.1

23.7

147.4

70

70

84.7

89

100

16

57.6

47.6

10

111.9

180.5

17.5

98.3

24.3

152.4































Seal Size

A

B

Cmin

Cmax

D

E

F

G

H

I

J

K

L

N

1

1

1.538

1.625

2

0.469

2.194

1.8

0.394

2.401

4.134

0.551

2.008

0.807

3.9

1.125

1.125

1.678

1.75

2.125

0.469

2.194

1.8

0.394

2.559

4.375

0.551

2.183

0.8

4

1.25

1.25

1.853

1.875

2.25

0.551

2.194

1.8

0.394

2.618

4.134

0.551

2.34

0.835

3.9

1.375

1.375

1.932

2

2.312

0.52

2.194

1.8

0.394

2.697

4.375

0.551

2.418

0.846

4.1

1.5

1.5

2.084

2.25

2.75

0.63

2.269

1.875

0.394

3.177

5.315

0.551

2.783

0.97

4.5

1.625

1.625

2.209

2.375

2.75

0.61

2.269

1.875

0.394

3.177

5.315

0.551

2.783

0.807

4.5

1.75

1.75

2.334

2.5

2.937

0.63

2.269

1.875

0.394

3.297

5.475

0.551

2.982

0.957

4.625

1.875

1.875

2.459

2.625

2.937

0.63

2.269

1.875

0.394

3.297

5.475

0.551

2.982

0.957

4.625

2

2

2.569

2.75

3.062

0.63

2.269

1.875

0.394

3.45

5.906

0.689

3.108

0.97

4.9

2.125

2.125

2.709

2.875

3.437

0.61

2.269

1.875

0.394

3.821

5.906

0.689

3.346

0.97

5.375

2.25

2.25

2.834

3

3.625

0.63

2.269

1.875

0.394

4.03

6.475

0.689

3.493

0.97

5.5

2.375

2.375

2.959

3.125

3.625

0.63

2.269

1.875

0.394

4.03

6.475

0.689

3.493

0.97

5.5

2.5

2.5

3.084

3.25

3.875

0.63

2.269

1.875

0.394

4.28

6.725

0.689

3.785

0.933

5.8

2.625

2.625

3.209

3.375

3.875

0.63

2.269

1.875

0.394

4.28

6.725

0.689

3.785

0.933

5.8

2.75

2.75

3.334

3.5

3.937

0.63

2.269

1.875

0.394

4.405

7.1

0.689

3.871

0.957

6
