Product Name:G
Keywords:slurry pump, slurry pump seal, slurry seal, centrifugal slurry pump, alumina production process, mechanical seal, shaft seal

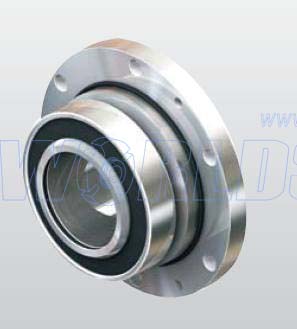

Product Description:TSG series can use in large slurry pumps of industry production process, for example alumina production process. These products can be flushing or without flushing. World seal have rich experience of the mechanical seal used in media of abrasive, corrosive, clogging and crystallizing.
|
OPERATING LIMITS |
|
|
Temperature: |
-30℃~+200℃ |
|
Pressure: |
≤2MPa |
|
Speed: |
≤23m/s |
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
SiC/TC |
|
●Secondary Seal: |
VITON/EPDM/Kalrez |
|
●Other Parts : |
C-276/Duplex/SUS316 |

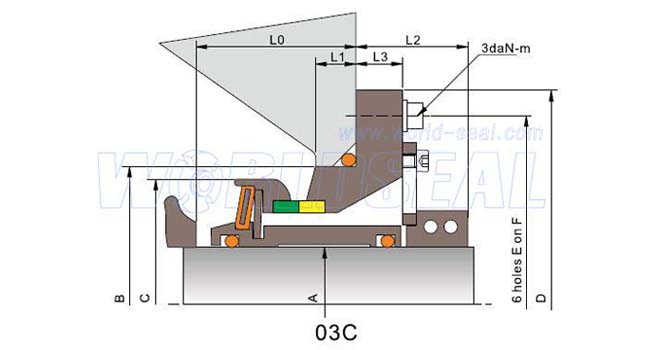

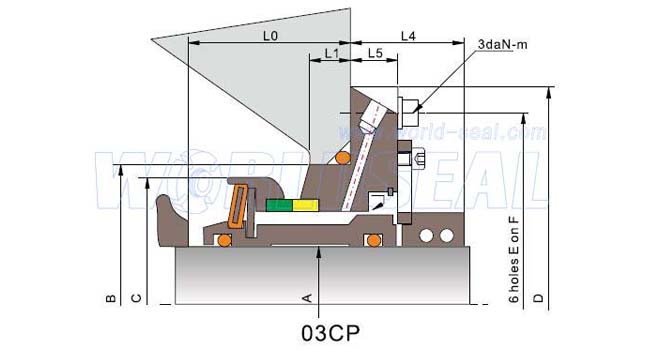

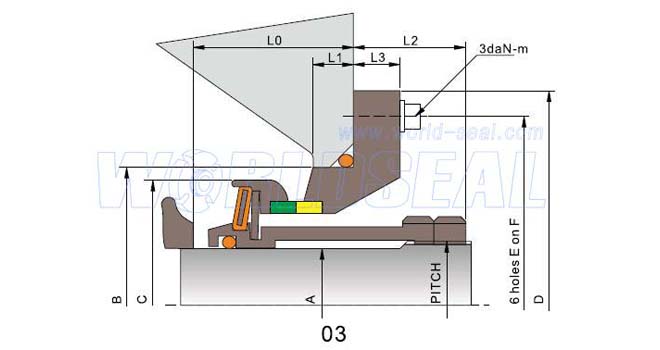

(03、03C、03CP数据表)
|
A |
B |
C |
D |
E |
F |
L0 |
L1 |
L2 |
L3 |
L4 |
L5 |
|
20~32 |
76 |
72 |
124 |
11 |
106 |
48.5 |
13 |
32 |
12 |
61.5 |
30 |
|
33~51 |
108 |
99 |
168 |
13 |
148 |
61 |
15 |
38 |
18 |
70 |
35 |
|
52~78 |
140 |
135 |
199 |
13 |
180 |
61 |
15 |
39 |
19 |
81 |
40 |
|
79~108 |
185 |
170 |
240 |
13 |
220 |
62 |
16 |
40 |
20 |
85 |
40 |
|
109~137 |
210 |
208 |
290 |
13 |
260 |
72 |
22 |
40 |
20 |
90 |
40 |
|
138~180 |
280 |
264 |
370 |
17 |
330 |
93 |
25 |
42 |
22 |
93 |
42 |
Pitch:pleas consult us according to diameter

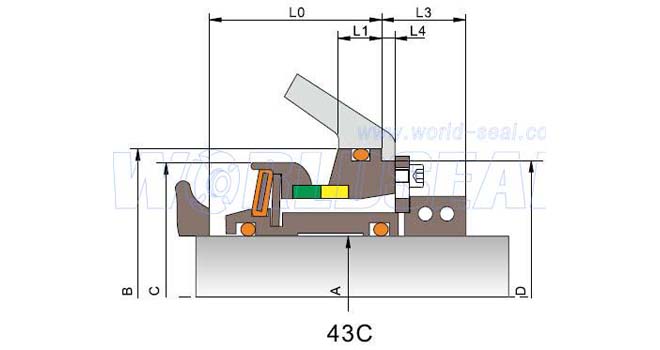

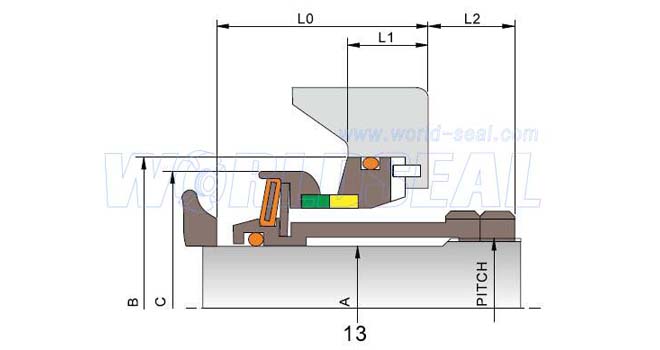

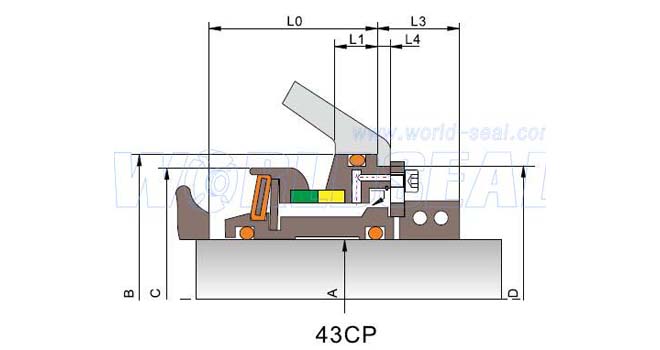

(13、43C、43CP数据表)
|
A |
B |
C |
D |
L0 |
L1 |
L2 |
L3 |
L4 |
|
20~32 |
76 |
72 |
68 |
50.5 |
15 |
40.5 |
25 |
4 |
|
33~51 |
108 |
99 |
102 |
61 |
15 |
48 |
28 |
6 |
|
52~78 |
140 |
135 |
131 |
63 |
17 |
57 |
30 |
6 |
|
79~108 |
185 |
170 |
177 |
67 |
18 |
58 |
33 |
6 |
|
109~137 |
210 |
208 |
202 |
86 |
34 |
60 |
50 |
6 |
|
138~180 |
280 |
264 |
265 |
105 |
40 |
62 |
60 |
8 |
