Product Name:DGS-B01/B02
Keywords:mechanical seal, dry gas seal, dry seal, gas seal, mechanical seals for pumps, cartridge seal, pump seals, mechanical shaft seals, dry gas seal centrifugal compressor, dry gas seal compressor, mechanical seals centrifugal pumps.

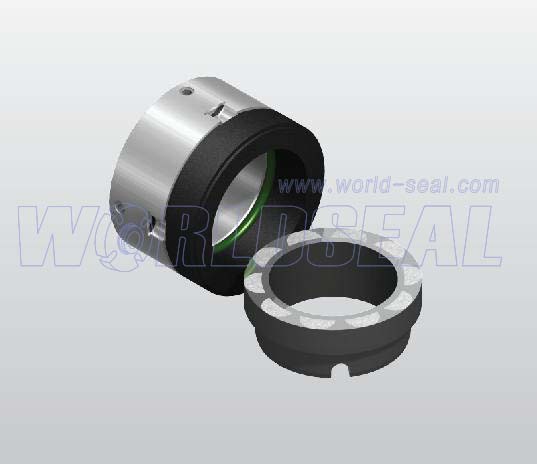

Product Description:DGS-B01/B02 belong to gas lubricated, non-contacting seals, and no pressure difference is required for operation.
|
OPERATING LIMITS |
|
|
Temperature: |
-20℃~+260℃ |
|
Pressure: |
≤2.5MPa |
|
Speed: |
≤25m/s |
gher operations conditions also achievable, please contact with world seal engineer: info@world-seal.com
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
Carbon |
|
●Secondary Seal: |
VITON/Kalrez |
|
●Other Parts : |
Hastelloy-C/Duplex/SUS316 |
|

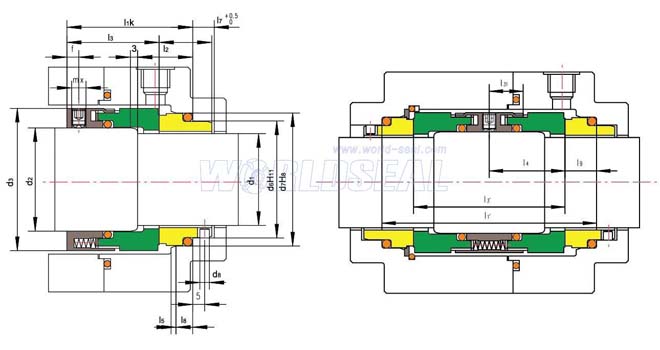

d1 |
d2 |
d3 |
d6 |
d7 |
d8 |
l1k |
l1' |
l2 |
l3 |
l3' |
l4 |
l5 |
l6 |
l7 |
l8 |
l9 |
l31 |
f |
mx |
|
28 |
33 |
48 |
37 |
43 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
30 |
35 |
50 |
39 |
45 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
32 |
38 |
55 |
42 |
48 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
33 |
38 |
55 |
42 |
48 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
35 |
40 |
57 |
44 |
50 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
38 |
43 |
60 |
49 |
56 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
40 |
45 |
62 |
51 |
58 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
43 |
48 |
65 |
54 |
61 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
45 |
50 |
67 |
56 |
63 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
48 |
53 |
70 |
59 |
66 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
50 |
55 |
72 |
62 |
70 |
4 |
57.5 |
99 |
25 |
42.5 |
69 |
34.5 |
2.5 |
6 |
9 |
23 |
15 |
16.5 |
5 |
M6 |
|
53 |
58 |
79 |
65 |
73 |
4 |
57.5 |
104 |
25 |
42.5 |
74 |
37 |
2.5 |
6 |
9 |
23 |
15 |
17 |
5 |
M6 |
|
55 |
60 |
81 |
67 |
75 |
4 |
57.5 |
106 |
25 |
42.5 |
76 |
38 |
2.5 |
6 |
9 |
23 |
15 |
17 |
5 |
M6 |
|
58 |
63 |
84 |
70 |
78 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
60 |
65 |
86 |
72 |
80 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
63 |
68 |
89 |
75 |
83 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
65 |
70 |
91 |
77 |
85 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
70 |
75 |
99 |
83 |
92 |
4 |
70 |
118 |
28 |
52 |
82 |
41 |
2.5 |
7 |
9 |
26 |
18 |
19 |
7 |
M8 |
|
75 |
80 |
104 |
88 |
97 |
4 |
70 |
120 |
28 |
52 |
84 |
42 |
2.5 |
7 |
9 |
26 |
18 |
19 |
7 |
M8 |
|
80 |
85 |
109 |
95 |
105 |
4 |
70 |
120 |
28 |
51.8 |
83.6 |
41.8 |
3 |
7 |
9 |
26.2 |
18.2 |
19 |
7 |
M8 |
|
85 |
90 |
114 |
100 |
110 |
4 |
75 |
120 |
28 |
56.8 |
83.6 |
41.8 |
3 |
7 |
9 |
26.2 |
18.2 |
19 |
7 |
M8 |
|
90 |
95 |
119 |
105 |
115 |
4 |
75 |
120 |
28 |
56.8 |
83.6 |
41.8 |
3 |
7 |
9 |
26.2 |
18.2 |
19 |
7 |
M8 |
|
95 |
100 |
124 |
110 |
120 |
4 |
75 |
120 |
28 |
57.8 |
85.6 |
42.8 |
3 |
7 |
9 |
25.2 |
17.2 |
19 |
7 |
M8 |
|
100 |
105 |
129 |
115 |
125 |
4 |
75 |
120 |
28 |
57.8 |
85.6 |
42.8 |
2 |
7 |
9 |
25.2 |
17.2 |
19 |
7 |
M8 |
|
105 |
115 |
148 |
122.2 |
134.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
- |
30 |
20 |
22.5 |
7 |
M8 |
|
110 |
120 |
153 |
128.2 |
140.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
- |
30 |
20 |
22.5 |
7 |
M8 |
|
115 |
125 |
158 |
136.2 |
148.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
- |
30 |
20 |
22.5 |
7 |
M8 |
|
120 |
130 |
163 |
138.2 |
150.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
- |
30 |
20 |
22.5 |
7 |
M8 |
|
125 |
135 |
168 |
142.2 |
154.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
- |
30 |
20 |
22.5 |
7 |
M8 |
