Product Name:DC-J03
Product type:For petroleum, chemistry and paper making dual cartridge seal
Keywords:For petroleum, chemistry and paper making dual cartridge seal. dual cartridge seal

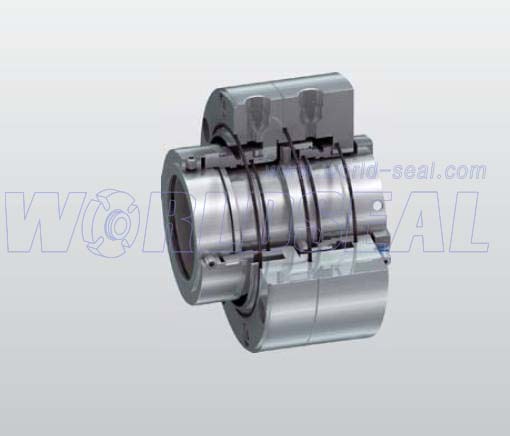

Product Description:DC-J03 dual cartridge seal, For petroleum, chemistry and paper making,medical industry.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.
|
OPERATING LIMITS |
|
|
Temperature: |
-30℃~+205℃ |
|
Pressure: |
≤2.1Mpa(shaft diameter≤75mm) ≤1.3Mpa(shaft diameter>75mm) |
|
Speed: |
≤25m/s |
|
|
|
|
●Rotary Ring: |
SiC/Carbon/TC |
|
●Stationary Ring: |
SiC/TC |
|
●Secondary Seal: |
VITON/PTFE Coated VITON/PTFE |
|
●Other Parts : |
SUS304/SUS316/Titanium/Hastelloy-C |
|

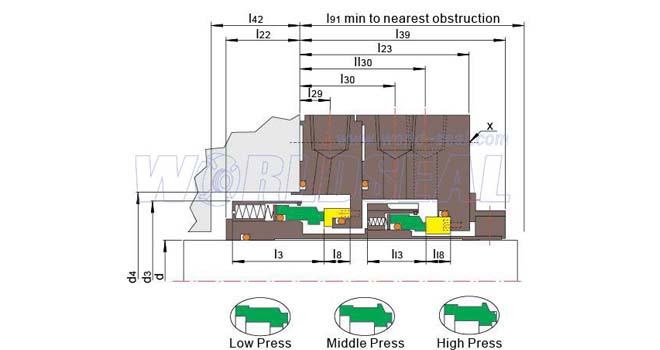

d (mm) |
d3 |
d4 |
l22 |
l23 |
l29 |
l30 |
ll30 |
l39 |
l42 |
l91 |
l3 |
l8 |
ll3 |
ll8 |
X |
|
22.6 |
63.6 |
70 |
47 |
79.9 |
16 |
50 |
61 |
98 |
50 |
100 |
52.4 |
14.3 |
30.1 |
11.1 |
M10 |
|
25.8 |
66.7 |
77.4 |
47 |
79.9 |
16 |
50 |
61 |
98 |
50 |
100 |
52.4 |
14.3 |
30.1 |
11.1 |
M10 |
|
28.9 |
69.9 |
80 |
47 |
79.9 |
16 |
50 |
61 |
98 |
50 |
100 |
52.4 |
14.3 |
30.1 |
11.1 |
M10 |
|
32.1 |
72.2 |
80 |
47 |
79.9 |
16 |
50 |
61 |
98 |
50 |
100 |
52.4 |
14.3 |
30.1 |
11.1 |
M10 |
|
35.3 |
76.2 |
87 |
47 |
79.9 |
16 |
50 |
61 |
98 |
50 |
100 |
52.4 |
14.3 |
30.1 |
11.1 |
M10 |
|
38.5 |
79.4 |
90 |
47 |
79.9 |
16 |
50 |
61 |
98 |
50 |
100 |
52.4 |
14.3 |
30.1 |
11.1 |
M10 |
|
41.6 |
82.6 |
90 |
50.2 |
79.9 |
16 |
47 |
60 |
98 |
53.2 |
100 |
52.4 |
14.3 |
33.3 |
11.1 |
M10 |
|
44.8 |
85.7 |
96.5 |
50.2 |
79.9 |
16 |
47 |
60 |
98 |
53.2 |
100 |
52.4 |
14.3 |
33.3 |
11.1 |
M10 |
|
48 |
88.9 |
99.7 |
50.2 |
79.9 |
16 |
47 |
60 |
98 |
53.2 |
100 |
52.4 |
14.3 |
33.3 |
11.1 |
M10 |
|
51.2 |
96.8 |
102.8 |
47.6 |
88.9 |
16 |
52.5 |
68 |
107 |
50.6 |
110 |
52.4 |
15.9 |
33.3 |
14.3 |
M12 |
|
54.3 |
100 |
106 |
47.6 |
88.9 |
16 |
52.5 |
68 |
107 |
50.6 |
110 |
52.4 |
15.9 |
33.3 |
14.3 |
M12 |
|
57.5 |
104.8 |
110.8 |
47.6 |
88.9 |
16 |
52.5 |
68 |
107 |
50.6 |
110 |
52.4 |
15.9 |
33.3 |
14.3 |
M12 |
|
60.7 |
108 |
114 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
63.9 |
111.1 |
117.1 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
67 |
114.3 |
120.3 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
70.2 |
117.5 |
123.5 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
73.4 |
120.7 |
126.7 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
76.6 |
123.8 |
129.8 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
79.7 |
130.2 |
136.2 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
82.9 |
133.4 |
139.4 |
53.1 |
88.9 |
16 |
51 |
68 |
107 |
56.1 |
110 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
86.1 |
136.5 |
142.5 |
53.1 |
88.9 |
16 |
51 |
68 |
110 |
56.1 |
113 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
89.3 |
139.7 |
145.7 |
53.1 |
88.9 |
16 |
51 |
68 |
110 |
56.1 |
113 |
52.4 |
19.8 |
33.3 |
15.9 |
M12 |
|
92.4 |
142.9 |
148.9 |
49.3 |
95.9 |
16 |
57 |
75 |
117 |
52.3 |
120 |
52.4 |
19.8 |
36.5 |
15.9 |
M12 |
|
95.6 |
146.1 |
152.1 |
49.3 |
95.9 |
16 |
57 |
75 |
117 |
52.3 |
120 |
52.4 |
19.8 |
36.5 |
15.9 |
M12 |
|
98.8 |
149.2 |
155.2 |
49.3 |
95.9 |
16 |
57 |
75 |
117 |
52.3 |
120 |
52.4 |
19.8 |
36.5 |
15.9 |
M12 |
|
102 |
152.4 |
158.4 |
49.3 |
95.9 |
16 |
57 |
75 |
117 |
52.3 |
120 |
52.4 |
19.8 |
36.5 |
15.9 |
M12 |
|
105.1 |
155.6 |
161.6 |
49.3 |
95.9 |
16 |
57 |
75 |
117 |
52.3 |
120 |
52.4 |
19.8 |
36.5 |
15.9 |
M12 |
|
108.3 |
161.9 |
167.9 |
49.3 |
95.9 |
16 |
57 |
75 |
117 |
52.3 |
120 |
52.4 |
19.8 |
36.5 |
15.9 |
M12 |
|
111.5 |
165.1 |
171.1 |
53.2 |
95.9 |
16 |
55 |
75 |
117 |
56.2 |
120 |
52.4 |
19.8 |
36.5 |
19.8 |
M12 |
|
121 |
174.8 |
180.8 |
53.2 |
95.9 |
16 |
55 |
75 |
117 |
56.2 |
120 |
52.4 |
19.8 |
36.5 |
19.8 |
M12 |
