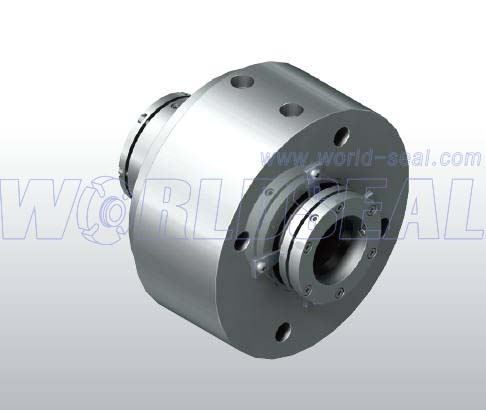

Product Name:MB-J12



Product type:For big compressors and industrial pump metal bellows seal



Keywords:For big compressors and industrial pump metal bellows seal, metal bellows seal



Product Description:MB-J12 metal bellows seal,for big compressors and industrial pump.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.



OPERATING LIMITS

Temperature:

-75℃~+425℃

Pressure:

≤2Mpa/6.9Mpa(doublewaveslice)

Speed:

≤25m/s













Rotary Ring:

SiC/Carbon/TC

Stationary Ring:

SiC/TC

Secondary Seal:

Flexiblecarbon

Metal Bellows:

SUS316L/AM350/Inconel718/Titanium/Hastelloy-C/Alloy-20

Other Parts :

SUS304/SUS316/Titanium/Hastelloy-C

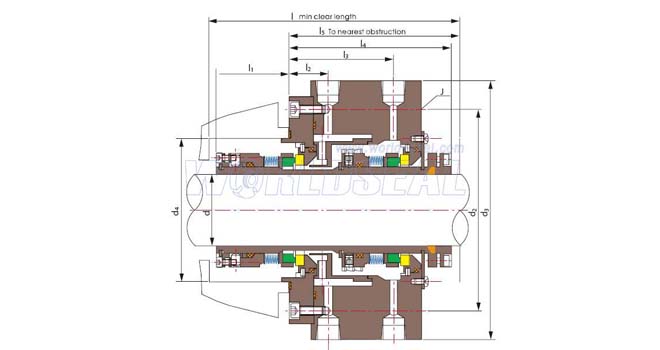

d

d4

d3

d2

l

l5

j

l1

l4

l3

l2

20

80

140

115

155

100

M12x1.75

46.8

95.5

51

35

30

90

150

125

160

100

M12x1.75

48.4

97.7

53

36

40

100

175

140

165

110

M16x2

48.7

103.8

57

41

50

120

195

160

170

110

M16x2

51.6

104.9

55

40

60

130

205

170

175

110

M16x2

54

106.4

58

42

70

140

215

180

180

110

M16x2

54

107.2

57

37

80

160

245

205

185

120

M20x2.5

54

110.6

59

41

90

170

255

215

190

120

M20x2.5

54

111.1

59

41

100

180

265

225

195

120

M20x2.5

54

111.1

59

41
